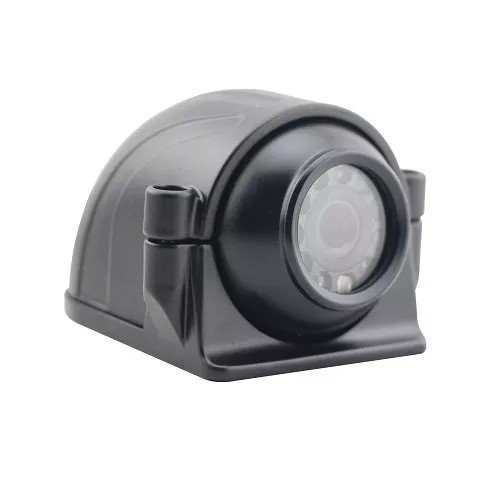

CAM5HD kamera mobile to side AHD, 4PIN, auto IR

Aprašymas

AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as side left or side right, due to the option to turn and tilt the lens, Its universal to use, because of the metal body and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor, e-mark.

• e-mark E24 (Ireland)

Features

• CMOS 1/3″ sensor chip
• HD resolution 720p
• automatic illumination, 10 x IR LED
• angle: sensing: 120°
• NTSC TV system
• water resistance: IP69K
• shock resistance min. 4G
• image orientation: mirror image
• possibility to rotate the camera lens during mounting
• 0.5m cable terminated with a 4PIN M12 screw connector
• DC 12V power supply (powered from the monitor, it is designed also for 24V vehicles)
• metal camera body
• microphone: No
• power consumption: <3W
• working temperature from -20 to +70 °C
• dimensions: 75 x 59 x 95 mm
• e-mark

Package contents: camera, allen key, screws, double-sided 3M tape

Note. The AHD camera is designed to be displayed on an AHD monitor, analog monitors do not support AHD cameras.
