Galinio vaizdo kamera VW CADDY

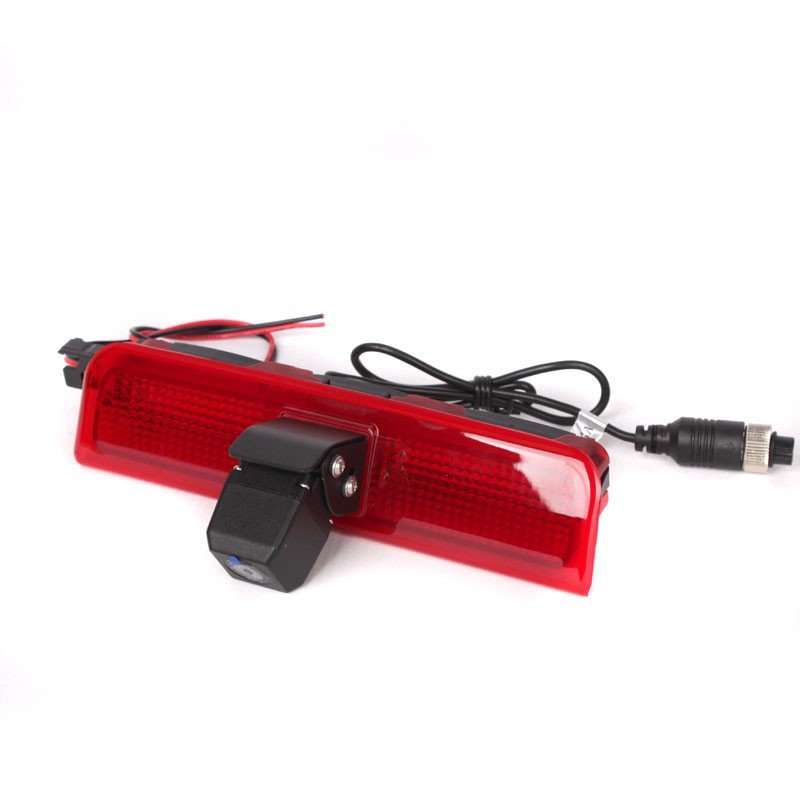

Parking camera integrated in the central brake light installed above the rear lift door for VW Caddy (10-15) vans. Camera with E-mark.

Assigned for the car models:

• VW Caddy III. (2008-5 / 2016)
• VW Caddy IV. (6 / 2016->) for wing door only

Technical parameters:

• sensor: PC3089 1/3″
• Electronic Aperture: 1/50 1/10000 sec.
• Minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 420
• weather protection: IP68
• sensing angle: 170°
• camera body: durable plastics „private housing”
• image display: mirror
• white balance: automatically
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• Signal cable: 6.2m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

E-mark: E9 10R

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
